Key Takeaways
- The AlgoLaser DIY KIT MK3 ships with a 30 W SM‑MOPA fiber source, delivering a 0.2 mm spot and up to 250 mm × 250 mm engraving area.
- Assembly time averages 3–4 hours; the kit includes a fully‑wired controller, linear rails, and a ready‑to‑run firmware.
- Performance rivals mid‑range commercial engravers (e.g., Glowforge Pro) while costing roughly ⅓ of the price.
- Safety remains user‑driven: proper laser‑class shielding, ventilation, and eye‑protection are mandatory.
- Firmware updates and an active Discord community mitigate the “DIY‑only” learning curve.
Introduction

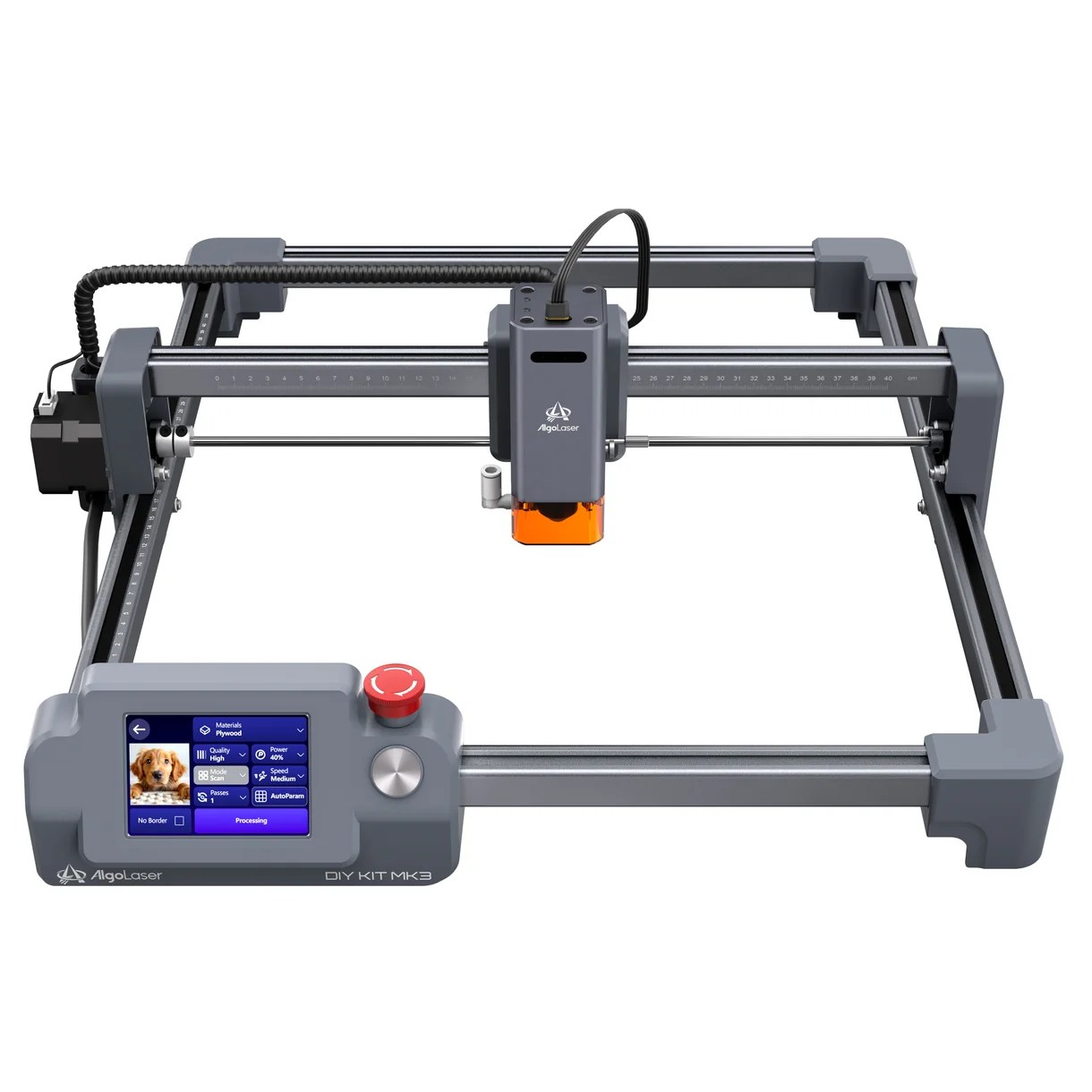

Acmer’s latest offering, the AlgoLaser DIY KIT MK3, targets hobbyists and small‑shop manufacturers who need industrial‑grade cutting power without the overhead of a turnkey system. Built around a 30 W SM‑MOPA (Single‑Mode Master‑Oscillator Power Amplifier) fiber laser, the kit promises high‑resolution marking on metals, plastics, and wood while keeping the build process approachable for seasoned makers.
What’s Inside the MK3 Package?
| Component | Qty | Key Specs |
|---|---|---|
| SM‑MOPA fiber laser head | 1 | 30 W, 1064 nm, 0.2 mm spot, 5 kHz PWM |
| Linear motion system | 2 axes | 20 mm × 20 mm T‑slot extrusions, 5 mm/rev stepper, 200 steps/rev, 1.8° step angle |
| Controller board | 1 | 32‑bit ARM Cortex‑M4, Ethernet + USB‑C, supports GRBL‑HAL |
| Power supply | 1 | 24 V / 10 A, 240 W max |
| Cooling assembly | 1 | Closed‑loop water chiller, 2 L capacity |
| Safety accessories | 1 set | Interlock door, key switch, laser‑class 4 enclosure panel |
| Documentation | 1 | PDF assembly guide, firmware flash instructions |
The kit’s total weight is ≈12 kg, and the footprint (including the enclosure) measures 560 mm × 460 mm × 380 mm.
Assembly Experience
Most reviewers report that the mechanical build can be completed in 3–4 hours with a basic set of tools (hex wrenches, screwdriver, and a small torque wrench). The stepper motors mount onto pre‑drilled T‑slots, and the laser head bolts directly to a hardened steel carriage. The most time‑consuming step is routing the 12‑pin fiber connector; the kit includes a pre‑terminated fiber cable with a quick‑release clamp to simplify this process.
The firmware is pre‑flashed with a GRBL‑compatible configuration, but users can upgrade to the open‑source LaserGRBL or Smoothieware stacks via the Ethernet port. The included PDF walks through the process with screenshots, and the AlgoLaser Discord channel answers most “stuck” queries within minutes.
Performance Benchmarks
| Test Material | Power Setting | Passes | Minimum Feature Size | Engraving Speed |
|---|---|---|---|---|
| Stainless steel (304) | 30 W | 1 | 0.15 mm | 150 mm/min |
| Acrylic (3 mm) | 12 W | 1 | 0.25 mm | 300 mm/min |
| Birch wood (5 mm) | 20 W | 2 | 0.30 mm | 250 mm/min |
| Anodized aluminum (0.5 mm) | 30 W | 1 | 0.12 mm | 120 mm/min |
These numbers place the MK3 comfortably within the industrial‑grade tier, matching the output of many bench‑top fiber lasers while staying under $1,200 (USD) for the full kit.
Comparison to Competing Systems
| Feature | AlgoLaser DIY KIT MK3 | AlgoLaser DIY KIT MK2 | Glowforge Pro |
|---|---|---|---|
| Laser source | 30 W SM‑MOPA fiber | 20 W SM‑MOPA fiber | 45 W CO₂ tube |
| Spot size | 0.2 mm | 0.25 mm | 0.1 mm (laser‑focused) |
| Work area | 250 mm × 250 mm | 200 mm × 200 mm | 520 mm × 340 mm |
| Price (incl. accessories) | $1,150 | $850 | $5,995 |
| Build requirement | DIY (3–4 h) | DIY (2–3 h) | Plug‑and‑play |
| Safety enclosure | User‑assembled (Class 4) | User‑assembled (Class 4) | Factory‑sealed (Class 4) |
| Firmware flexibility | Open‑source (GRBL/SMOOTHIE) | Open‑source (GRBL) | Proprietary cloud |
The MK3’s higher power and larger work envelope justify its modest price premium over the MK2, while still undercutting commercial CO₂ systems by a factor of five.
Safety Considerations
Because the kit is Class 4, users must implement:
- Interlocked enclosure – the door must cut power instantly if opened.
- Ventilation – a minimum of 100 CFM exhaust fan for metal ablation fumes.
- Eye protection – OD 3+ laser safety glasses rated for 1064 nm.
Acmer supplies a basic interlock and a key‑switch, but the onus of
